SJSL65B PA+Glass Reinforcement Twin Screw Extruder Machine Plastic Pellet Making Line
Quick details
Power:90kw
Screw diameter:62.4mm
Barrel diameter:63mm
L/D:40:1 for PA+glass, for non-tropped fiberglass, there is hole on our twin screw extruder barrel to feed it.
For chopped fiberglass, usually special side feeder is needed to add them.
Usually the fiberglass add is 15%-35%, and some customers may add more, like 50% etc, our machine can meet different requirements of formula.
Output:300kg/h
Cutting way: water strand for engineering plastic
Warranty:one year
Lead time:45 days after deposit
Our water strand twin screw extruder is widely used for engineering mateial like PA, ABS, PC, PMMA, POM, PBT, PET etc
Scope of supply
| No. |
Contents |
Unit |
Quantity |
Marks |
| 1 |
Twin screw extrusion system |
set |
1 |
|
| 1.1 |
Feeding system |
set |
1 |
1.5kw |
| 1.2 |
SJ-65BTwin screw extruder |
set |
1 |
90kw, 40:1 |
| 1.3 |
Vacuum venting system |
set |
1 |
2.2kw |
| 1.4 |
Water cycling system |
set |
1 |
0.55kw |
| 1.5 |
Automatic screen changer |
set |
1 |
1.5kw |
| 2 |
Electric cabinet |
set |
1 |
PID |
| 3 |
Water-strand auxiliary system |
set |
1 |
|
| 3.1 |
Die head |
set |
1 |
|
| 3.2 |
Water trough |
set |
1 |
4M |
| 3.3 |
Dryer |
set |
1 |
2.2kw |
| 3.4 |
Pelletizer |
set |
1 |
300kg/h, 4kw |
| 4 |
Documents |
set |
1 |
|

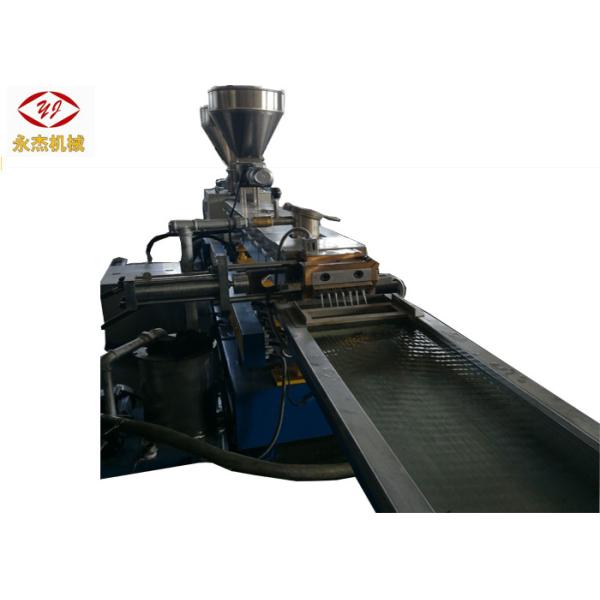

Photo of SJSL65B twin screw extruder machine
Main technical data of various model of twin screw extruder pelleitizing machine
| Model type |
Series |
Barrel Diameter (mm) |
Screw Diameter (mm) |
Screw L/D |
screw speed n(r/min) |
Main motor power(Kw) |
Screw torque T(N.m) |
Torque rating (T/A3) |
Typical production capacity (kg/h) |
| SJSL-36 |
A/B/C/D |
36 |
35.6 |
32-48 |
400/600 |
11/15/18.5/22 |
125-225 |
4.6-8.3 |
30-120 |
| SJSL-51 |
A/B/C/D |
51 |
50.5 |
32-52 |
500/600 |
45/55/75/90 |
405-680 |
5.1-8.5 |
120-400 |
| SJSL-65 |
A/B/C/D |
63 |
62.4 |
32-64 |
500/600 |
75/90/110/132 |
680-1200 |
4.8-8.5 |
180-750 |
| SJSL-75 |
A/B/C/D |
72 |
71 |
32-64 |
500/600 |
110/132/160/250 |
995-1890 |
4.6-8.7 |
300-1200 |
| SJSL-95 |
A/B/C/D |
94 |
93 |
32-64 |
500/600 |
250/315/450/550 |
2260-4510 |
4.7-8.7 |
700-2500 |
| SJSL-135 |
A/B/C/D |
135 |
133 |
32-48 |
400/500 |
550/750/900/1200 |
6200-10800 |
4.4-7.7 |
1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
